DigitalEQ active receiver hubs
Active video receivers and transmitters
Passive video transceiver stub hubs
Passive video transceiver hubs
DigitalEQ active receiver hubs
These hubs allow the transmission of full-motion monochrome or color video for distances up to 1 mile (1.6km) using Category 2 or better UTP wire.
The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, wiring polarity, ground loops, and voltage transients, independent of video signal content.
Long run video signals co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits thanks to the unparalleled interference rejection and low emissions.
Features
- Up to 3,000ft (1km) when used with any passive NVT transceiver or hub
- Up to 1 mile (1.6km) when used with the NV-653T active transmitter
- Up to 1,000ft (300m) with shielded twisted-pair when used with any passive transceiver or hub
- Exceptional interference rejection
- Built-in transient protection and ground-lifting
- Frequency Response DC to 10 MHz
- Automatic compensation for reverse-polarity wiring
- At-a-glance per-channel diagnostics
- Compatible with qualified UTP cameras
- Includes 60cm coax jumper cables, rack mount hardware and NV-RJ45A adaptors
- Limited lifetime warranty
DigitalEQ active receiver hubs come in three models
NV-3272, 32-channel
NV-1672, 16-channel
NV-872, 8-channel
The installation for all models is explained here
StubEQ active receiver hubs
The StubEQ™ hubs allow the transmission of full-motion monochrome or color video for distances up to 2,000ft (600m) using Category 2, Category 5, Category wire or better UTP wire, depending on the number of channels.
The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, wiring polarity, ground loops, and voltage transients, independent of video signal content.
Long run video signals co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits thanks to the unparalleled interference rejection and low emissions.
Features
- Up to 2,000ft (600m) when used with the NV-653T active transmitter
- Up to 1,500ft (460m) when used with any passive NVT Phybridge transceiver or hub
- Exceptional interference rejection
- Built-in transient protection and ground-lifting
- Compatible with qualified UTP cameras
- Includes rack mount hardware and NV-RJ45A adaptors
- Limited lifetime warranty
StubEQ active receiver hubs come in four models
NV-3242, 32-channel
NV-1642, 16-channel
NV-842, 8-channel
NV-442, 4-channel
The installation for all models is explained here
Active video receivers and transmitters
These active (amplified) devices allow the transmission of real-time monochrome or color video on up to 1 mile (1,6km) using Category UTP telephone wire, Category 2 or better UTP telephone wire, depending on the number of channels.
Long run video signals co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits thanks to the unparalleled interference rejection and low emissions.
Features
- Up to 3,000ft (1km) when used with any passive NVT Phybridge transceiver
- Up to 1 mile (1,6km) when used with NV-653T transmitter
- Exceptional interference rejection
- Frequency Response DC to 10 MHz
- Built-in transient protection and ground lifting
- Built-in brightness and sharpness controls; blue power LED, green active LED
- Compatible with qualified UTP cameras
- Best choice for DVR and high resolution applications over 750ft (225m)
- Limited lifetime warranty
Active video receivers come in two models
NV-452R, 4-channel
NV-652R, single-channel
Active video transmitter comes in one model
NV-653T, single-channel
The installation for all models is explained here
Passive video transceiver stub hubs
The passive (non-amplified) stub hubs allow the transmission of real-time monochrome or color video over UTP telephone wire.
Baseband (composite) signals of any type are supported.
Video signals co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits thanks to the unparalleled interference rejection and low emissions.
Features
- Up to 3,000ft (1km) when used with any NVT Phybridge DigitalEQ Hub or active receiver
- Up to 1,500ft (460m) when used with NVT StubEQ
- Up to 750ft (225m) when used with any passive transceiver or hub
- No power required
- Exceptional interference rejection
- Frequency Response DC to 10 MHz
- Built-in transient protection
- Supports "up-the coax" type control signal up to 750ft (225m)
- Compatible with qualified UTP cameras
- Coax jumper cables are not included
- Limited lifetime warranty
Passive video transceiver stub hubs come in three models
NV-3213S, 32-channel
NV-1613S, 16-channel
NV-813S, 8-channel
The installation for all models is explained here
Passive video transceiver hubs
The passive (non-amplified) hubs allow the transmission of real-time monochrome or color video over UTP telephone wire.
Video signals co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits thanks to the unparalleled interference rejection and low emissions.
Features
- Up to 3,000ft (1km) when used with any NVT Phybridge DigitalEQ Hub or active receiver
- Up to 1,500ft (460m) when used with NVT StubEQ
- Up to 750ft (225m) when used with any passive transceiver or hub
- No power required
- Exceptional interference rejection
- Built-in transient protection
- Frequency Response DC to 10 MHz
- Supports “up-the coax” type control signal up to 750ft (225m)
- Compatible with qualified UTP cameras
- Includes coax jumper cables and rack mount hardware
- Limited lifetime warranty

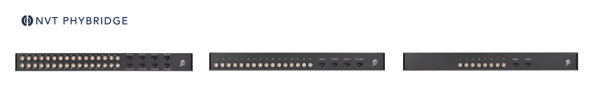

Passive video transceiver hubs come in three models
NV-3213, 32-channel
NV-1613, 16-channel
NV-813, 8-channel
The installation for all models is explained here
Passive video transceivers
The passive (non-amplified) transceivers allow the transmission of real-time monochrome or color video over UTP wire.
Baseband (composite) signals of any type are supported.
Video signals co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits thanks to the unparalleled interference rejection and low emissions.
Features
- Up to 3,000ft (1km) when used with any NVT Phybridge DigitalEQ Hub or active receiver
- Up to 1,500ft (460m) when used with NVT StubEQ
- Up to 750ft (225m) when used with any passive transceiver or hub
- No power required
- Exceptional interference rejection
- Built-in transient protection
- Frequency Response DC to 10 MHz
- Supports "up-the coax" type control signal up to 750ft (225m)
- Compatible with qualified UTP cameras (for NV-413A model)
- Male BNC allows connection directly to the camera or DVR (for NV-217J-M, NV-208A-M models)
- Mini-coax pigtail supports in-camera mounting in most dome cameras (for NV-214A-M, NV-215J-M models)
- Limited lifetime warranty
Passive video transceivers come in six models
NV-413A, 4-channel
NV-217J-M, single-channel
NV-208A-M, single-channel
NV-213A-M, single-channel
NV-214A-M, single-channel
NV-215J-M, single-channel
The installation for all models is explained here
