NetBorder SS7 VoIP Gateways
Connecting the legacy SS7 network (using T1/E1 telco lines) to VoIP system is easy with Sangoma’s NetBorder SS7 VoIP media gateways.
Supporting concurrent use of ISDN, SS7 CAS (R2), SIP, and SIGTRAN signaling protocols, Sangoma’s on-premise SS7 VoIP Gateway appliances connect traditional SS7 edge, core and peer zones with new-generation, MEGACO and SIP networks with transcoding capabilities.
NetBorder SS7 VoIP gateways datasheet
Models and use cases
High Density 64 E1/T1 SS7 VoIP Gateway
1-8 E1/T1 SS7 VoIP Gateway
Features
- 1-8 ports E1/T1
- Telco grade echo cancellation
- TDM protocol support: SS7, PRI, MFCR2
- VoIP protocols: SIP V2/RFC3261, SIGTRAN M2UA RFC 3331, SCTP RFC 2960, Megaco/H248, H.323 Call Routing
- Transcoding support: G.711, G.723.1, G.726, iLBC, G.729AB, GSM, G.722, AMR, G.722.1
- Fully featured web GUI for configuration, monitoring and diagnostics
8-32 E1/T1 SS7 VoIP Gateway
Features
- 8-32 ports E1/T1
- Telco grade echo cancellation
- TDM protocol support: SS7, PRI, MFCR2
- VoIP protocols: SIP V2/RFC3261, SIGTRAN M2UA RFC 3331, SCTP RFC 2960, Megaco/H248, H.323 Call Routing
- Transcoding support: G.711, G.723.1, G.726, iLBC, G.729AB, GSM, G.722, AMR, G.722.1
- Fully featured web GUI for configuration, monitoring and diagnostics
High Density 64 E1/T1 SS7 VoIP Gateway
Features
- 64 ports E1/T1
- Telco grade echo cancellation
- TDM protocol support: SS7, PRI, MFCR2
- VoIP protocols: SIP V2/RFC3261, SIGTRAN M2UA RFC 3331, SCTP RFC 2960, Megaco/H248, H.323 Call Routing
- Transcoding support: G.711, G.723.1, G.726, iLBC, G.729AB, GSM, G.722, AMR, G.722.1
- Fully featured web GUI for configuration, monitoring and diagnostics
Use cases
Mobile based services. Provide SMS, MMS and location bases services (through HLR) by interconnecting directly into the mobile network which uses SS7 signaling.
High-density call completion platform. Provide competitive long distance and large scale call completion applications using cost-effective NetBorder SS7 Gateways with signaling and media combined in a single platform.
SIP network to SS7 interconnect. Provide High value VoIP services to your customers.

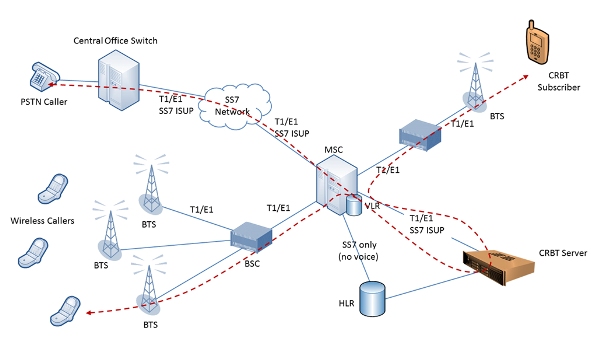

Caller ring back tone (CRBT) solution. Carriers can provide Caller Ring Back Tone to their customers as an additional service.
