Extender series
EC link, EC link plus, EC4
The EC link and EC 4 media converters support the IP end points leveraging the CLEER or EC10 switches. The EC link can be easily converted to become an Ethernet extender, with an EC link at the base unit and an additional media converter (either another EC link or EC4) at the other end.
If required, the media converters can be locally powered to deliver additional power to the IEEE compliant IP end point.
EC links are energy efficient, consuming less than 1W.
FLEX link
The FLEX Link adapter is an Ethernet extender that extends Ethernet and power over 2 or 4 pair UTP. It is used with the FLEX 24 Port switch and FLEX 8 Port switch to support long reach requirements. The FLEX Link can be locally powered to provide higher power to the end point.
EC1701
EC1701 Ethernet over Coax EoC Transceiver is a compact media converter that allows 10/100 BaseT Ethernet and PoE+ power to be transmitted using coax cable. These devices are often used in legacy installations where existing cable is re-deployed as part of an upgrade to IP cameras.
These transceivers are extremely simple to use, with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/activity for RJ45 and BNC ports.
EC1701U
EC-1701U Eo2™ Ethernet over 2-wire Transceiver is a compact media converter that allows 10/100 BaseT Ethernet and PoE or PoE+ power to be transmitted using 18/2 or similar. These devices are typically used in legacy installations where existing 18/2 is re-used as part of an upgrade to IP devices.
These transceivers are extremely simple to use, with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/activity for RJ45 and 2-wire ports.
ET1801
ET1801 TBus PoE+ Transmitter is a compact bus-architected media converter that delivers 10/100 BaseT Ethernet and PoE+ power via coax, UTP or 2-Wire or shielded twisted pair cable.
These transmitters are extremely simple to use, with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/quality/activity for RJ45 and TBus ports.

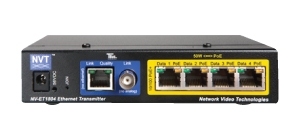

ET1804
ET1804 TBus PoE+ Transmitter is a compact bus-architected media converter that delivers 10/100 BaseT Ethernet and PoE+ power via coax, UTP or 2-wire or shielded twisted pair cable.
These transmitters are extremely simple to use, with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/quality/activity for RJ45 and TBus ports.
ER1804
ER1804 TBus Ethernet over Coax/UTP Receiver is a compact bus-architected receiver hub that has four TBus ports, each capable of supporting multiple TBus transmitters and their subsequent 10/100 BaseT Ethernet and PoE+ powered devices.
The TBus transmission medium can be coax, 2-Wire/UTP, or shielded twisted pair. Data rates up to 150 Mbps are achievable, making these devices the ideal choice in new or legacy installations where existing cable is re-deployed as part of an upgrade to IP cameras.
