Managed series
CLEER switch
CLEER (Coax Leveraged Ethernet Extended Reach) is an award winning 24 port Ethernet data switch that provides a complete parallel voice network over existing telephone cabling. It delivers fast Ethernet and PoE+ over coax cable with 2,000 ft (609m) reach.
Deploying IP telephony and Unified Communications (UC) applications is easy, quick and non-disruptive. Also it is cost-effective because it leverages existing coax infrastructure.
For every active port on the Phybridge CLEER, it is necessary to have one EC link adapter.
Click image for a larger view
Features
- 100 Mbps symmetrical, full duplex
- PoE+ over coax cable with 2,000 ft (609m) reach
- Supports the most demanding IP cameras, no speed degradation with longer distance
- PowerWISE® Technology makes it one of the most energy efficient switches (it consumes less than 17W)
- Fully managed with plug and play deployment
PoLRE switch
PoLRE (Power over Long Reach Ethernet) is an award winning 24 and 48 port Ethernet data switch that provides a complete parallel voice network over existing telephone cabling. It delivers fast Ethernet and PoE over a single pair of wire with 1,200 ft (365m) reach or greater.
Migration to IP is quick, easy and cost effective by leveraging an existing single pair UTP infrastructure.
For every active port on the Phybridge PoLRE, it is necessary to have one PhyLink adapter.
Click image for a larger view
Features
- 10 Mbps symmetrical, full duplex
- PoE+ over a single pair of UTP with over 1,200 ft (365m) reach
- Supports IP phones and other IEEE compliant devices, no speed degradation with longer distance
- PowerWISE® Technology makes it one of the most energy efficient switches (it consumes less than 17W)
- Fully managed with plug and play deployment

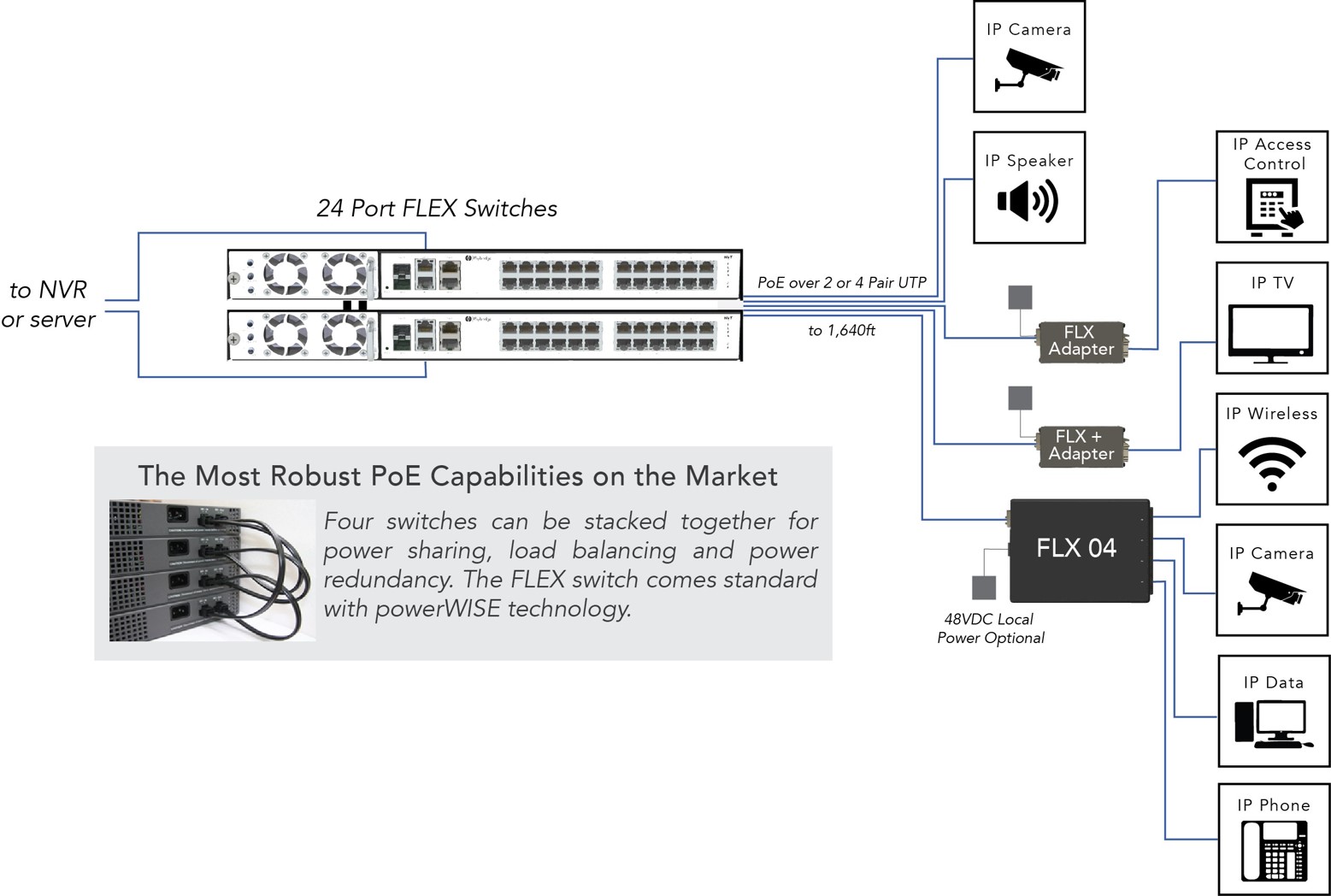

FLEX switch
FLEX switch delivers fast Ethernet and PoE++ (50W per port) over multiple pairs of UTP cable with five times the reach of traditional switches, up to 1,640 ft (500m).
Migration to IP is quick, easy and cost effective by leveraging an existing 2 or 4 pair UTP infrastructure.
Click image for a larger view
Features
- Operates in standard mode (without an adapter) and long reach PoE mode for extended reach
- PoE++ (50W per port) over multiple pairs of UTP cable with 1,640 ft (500m) reach
- PowerWISE® Technology makes it one of the most energy efficient switches (it consumes less than 20W)
- Fully managed with plug and play deployment
